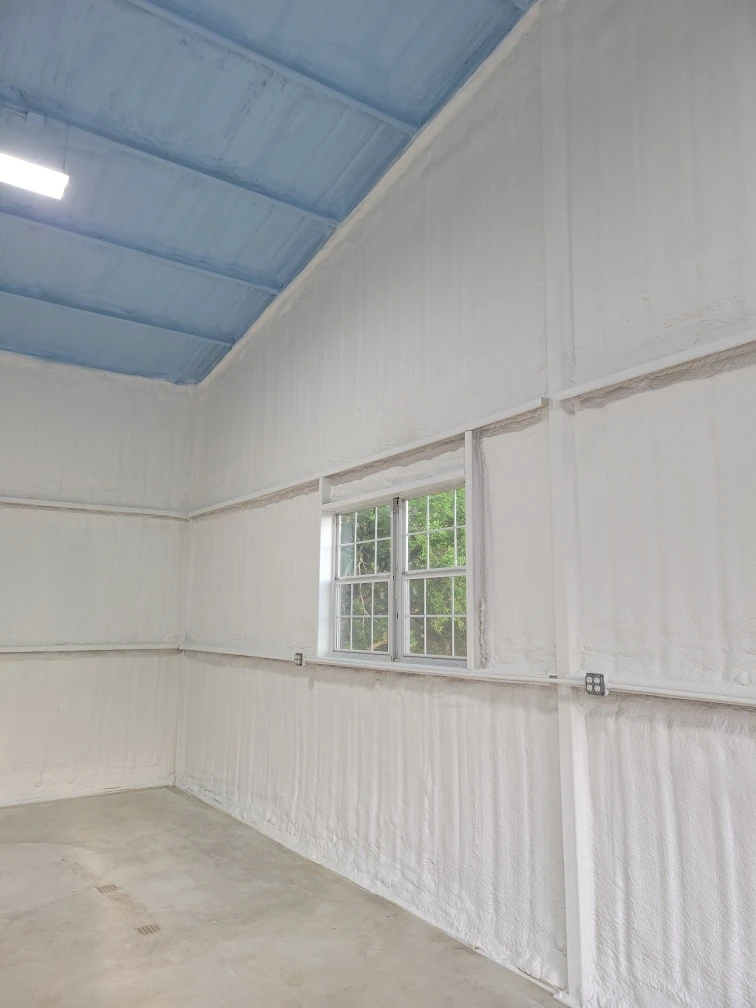

Closed-Cell Insulation Maintenance: Keeping It Efficient Over Time
Closed-cell insulation maintains its efficiency over time through regular visual inspections, promptly addressing minor damage, ensuring proper ventilation, and preventing…
The choice between open-cell and closed-cell foam for attic insulation depends on your climate, budget, and specific performance needs. Closed-cell foam offers a higher R-value per inch and acts as a vapor barrier, making it ideal for humid climates and where space is limited. Open-cell foam provides better sound dampening and costs less per inch, but requires more thickness to achieve the same R-value and isn’t suitable for moisture-prone areas. Spray Foam Tech has extensive experience helping homeowners navigate this decision based on their unique circumstances.
This guide will walk you through everything needed to make an informed choice, from technical specifications to real-world performance data. You’ll learn which option delivers the best return on investment for your specific situation.
Open-cell and closed-cell foam are both types of spray polyurethane foam, but their cellular structures create distinctly different insulation properties. Open-cell foam consists of cells that aren’t completely encapsulated, leaving space for air between cells. This structure makes it flexible and able to expand significantly during application, up to 100 times its liquid volume. The trapped air gives open-cell foam its insulating properties but also allows moisture vapor to pass through.
Closed-cell foam, on the other hand, has completely sealed cells that trap gas rather than air. The cells are packed tightly together, creating a dense, rigid material that can support structural weight. This density means closed-cell foam expands only 30-40 times its liquid volume during application. The trapped gas provides both superior insulation and creates an effective vapor barrier, preventing moisture transmission through the material.
The fundamental differences in cellular structure lead to practical performance differences. Closed-cell foam typically achieves R-6 to R-7 per inch, while open-cell foam delivers R-3.5 to R-4 per inch. This means you need roughly twice the thickness of open-cell foam to achieve the same R-value as closed-cell foam, a crucial consideration when space is at a premium in attic applications.
The table below breaks down the key performance differences between these two insulation types:
| Characteristic | Open-Cell Foam | Closed-Cell Foam |
|---|---|---|
| R-Value per Inch | R-3.5 to R-4 | R-6 to R-7 |
| Vapor Barrier | No (permeable) | Yes (impermeable) |
| Density | 0.5 to 1.2 lbs/ft³ | 1.5 to 2.5 lbs/ft³ |
| Expansion Ratio | 100:1 | 30:1 to 40:1 |
| Air Barrier | Yes | Yes |
| Sound Dampening | Excellent | Good |
| Cost per Square Foot | Lower | Higher |
| Application Thickness | Thicker required | Thinner required |
Beyond these basic metrics, real-world performance differs significantly based on installation conditions and climate factors. Closed-cell foam’s vapor barrier properties make it ideal for humid regions like the Gulf Coast, where moisture infiltration can cause serious problems. In dry climates, this same vapor barrier might trap moisture inside the attic, potentially causing issues if the building envelope isn’t properly sealed elsewhere.
The market for spray foam insulation continues to grow as homeowners recognize its benefits. According to Building Performance Association, properly installed spray foam can reduce heating and cooling costs by up to 50% compared to traditional insulation methods. This significant energy savings potential makes the initial investment in foam insulation increasingly attractive despite its higher upfront costs compared to fiberglass or cellulose.
Regional climate plays a decisive role in determining which foam type will perform best in your attic. In hot, humid climates like those found throughout the southern United States, closed-cell foam typically outperforms open-cell due to its vapor barrier properties. The impermeable nature of closed-cell foam prevents warm, moist air from infiltrating your living space through the attic, reducing the load on your air conditioning system and preventing moisture-related problems like mold growth.
Conversely, in cold, dry climates, open-cell foam might be the better choice. Its vapor-permeable nature allows the building envelope to breathe, which is essential for managing moisture that might accumulate from indoor sources like showers, cooking, and breathing. In these climates, trapping moisture inside the attic with closed-cell foam could potentially lead to condensation problems if the attic isn’t properly ventilated or if there are air leaks from the living space below.
Mixed climates present more complex decision-making. Many contractors recommend a hybrid approach, using closed-cell foam in certain areas (like roof decks in humid climates) and open-cell foam in others. This strategy optimizes performance while managing costs effectively. The key is understanding your specific microclimate and how your home’s design interacts with local weather patterns.
Bonus Tip: In regions with extreme temperature swings between day and night, the superior thermal mass of closed-cell foam can help moderate temperature fluctuations, reducing HVAC cycling and improving overall comfort levels.
The cost difference between open-cell and closed-cell foam is substantial, but so is the performance difference. Open-cell foam typically costs between $0.44 and $0.65 per board foot, while closed-cell foam ranges from $0.90 to $1.50 per board foot. A board foot equals 12 inches by 12 inches by 1 inch thick. This means closed-cell foam can cost up to three times more than open-cell foam for the same coverage area.
However, this simple cost comparison doesn’t tell the whole story. Because closed-cell foam provides roughly double the R-value per inch, you might need only half the thickness to achieve the same insulation performance. In spaces where thickness matters like between roof rafters in finished attics, this space efficiency can justify the higher cost per inch.
Energy savings provide the most compelling financial argument for foam insulation. The U.S. Department of Energy reports that proper attic insulation can save 10-50% on heating and cooling costs, with the higher savings typically achieved through high-performance systems like spray foam. In most homes, the energy savings offset the higher initial cost of foam insulation within 5-7 years, making it a solid investment in long-term comfort and efficiency.
Bonus Tip: When calculating return on investment, factor in not just energy savings but also the extended lifespan of HVAC equipment that doesn’t have to work as hard, reduced maintenance costs, and potential increases in home resale value. The comprehensive ROI picture often makes closed-cell foam more economical than it initially appears.
Before choosing between open-cell and closed-cell foam for your attic, several key factors deserve careful consideration:
Building Age and Condition – Older homes often have unique challenges like air leaks, inadequate ventilation, and moisture problems that affect which foam type will work best. New construction provides more flexibility but requires careful planning to ensure compatibility with other building systems.
Attic Usage – If you plan to finish the attic space as a living area, closed-cell foam’s structural support and space efficiency become more important. For unfinished storage attics, open-cell foam might provide sufficient performance at a lower cost.
Existing Insulation – Removing and replacing existing insulation adds to project costs. Sometimes, installing foam over existing insulation (if in good condition) can be cost-effective, though performance might not match a complete replacement.
Local Building Codes – Some regions have specific requirements for attic insulation, especially regarding vapor barriers and fire ratings. Check local requirements before making your decision.
Contractor Expertise – Proper installation is critical for both foam types. A poorly installed job won’t perform regardless of material quality. Ensure your contractor has specific experience with the foam type you’re considering.
The decision ultimately involves balancing multiple factors against your budget and long-term goals. There’s rarely a single “right” answer; the best choice depends on your specific circumstances and priorities.
The decision between open-cell and closed-cell foam for attic insulation comes down to your specific needs, climate, and budget constraints. Closed-cell foam delivers superior R-value per inch and moisture protection, making it ideal for humid climates and space-constrained applications. Open-cell foam offers better sound dampening and lower costs but requires more thickness and isn’t suitable for moisture-prone environments.
Consider your local climate patterns carefully, evaluate your attic usage plans, and factor in both short-term costs and long-term energy savings. The right choice will balance initial investment with ongoing performance, providing comfort and efficiency for years to come.
Ready to determine which insulation solution works best for your attic? Spray Foam Tech offers professional assessments and installation services tailored to your specific situation. Contact us at oldworldtx@hotmail.com or call (737) 777-9590 to schedule a consultation and receive a detailed evaluation of your insulation needs.
Yes, foam can be installed over existing fiberglass in many cases, but only if the existing insulation is dry, in good condition, and the attic space is properly prepared. This approach can be cost-effective but may not achieve optimal performance compared to complete removal and replacement.
Properly installed spray foam insulation typically lasts for the lifetime of the building. Most manufacturers offer warranties of 25 years or more Environmental Protection Agency. But the material itself doesn’t degrade significantly over time when protected from UV exposure and physical damage.
Once fully cured, spray foam is inert and doesn’t release particles that trigger allergies. In fact, by eliminating air movement through the building envelope, foam can reduce infiltration of allergens and pollutants from outside. The curing process does require proper ventilation to protect installers and occupants.
Properly installed foam does create an airtight building envelope, which is desirable for energy efficiency. However, controlled ventilation becomes essential in well-sealed homes. Most building codes require mechanical ventilation systems in airtight homes to ensure adequate fresh air exchange.
DIY spray foam installation is possible for small projects, but attic insulation typically requires professional equipment and expertise. Professional installers ensure proper thickness, coverage, and safety during installation. Mistakes in DIY applications can lead to serious problems, including inadequate insulation, moisture issues, and poor air quality.
